Stone Crushing Plant

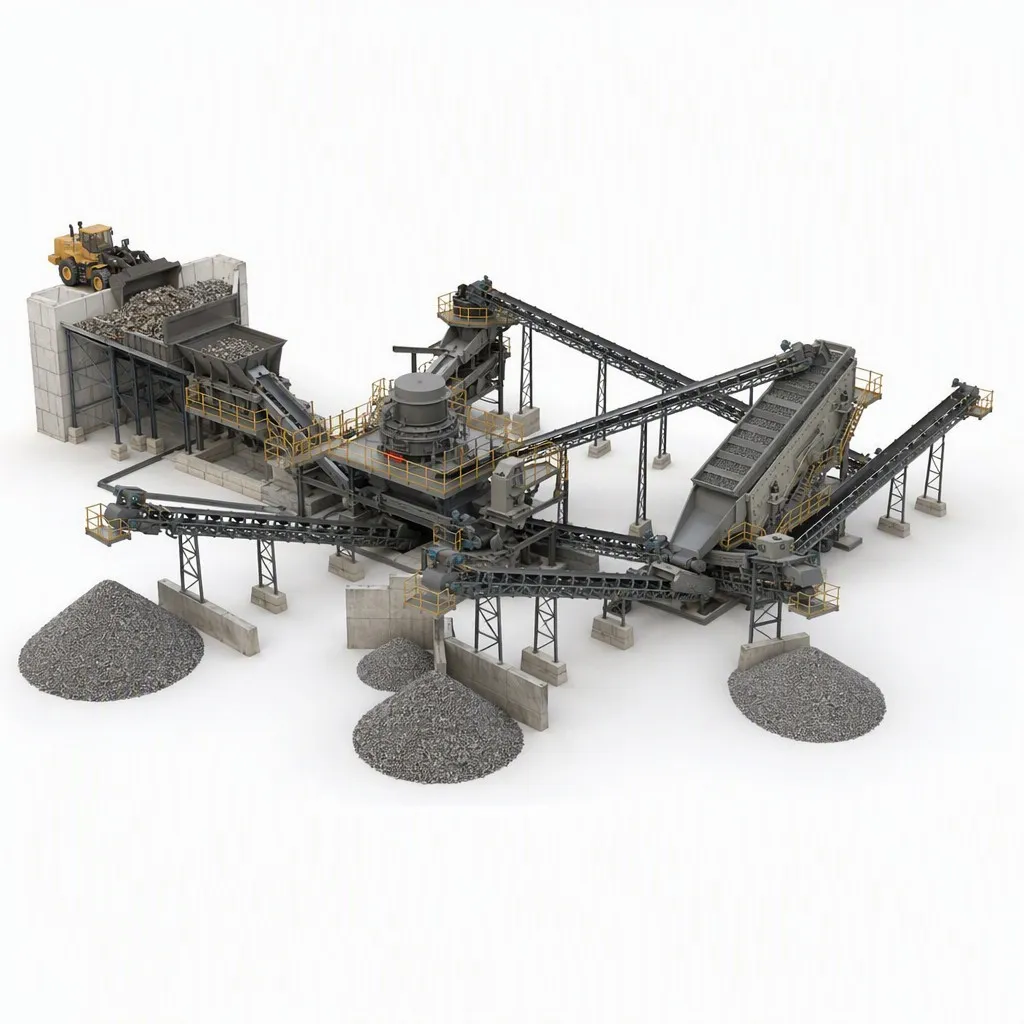

A configurable 200-1000 t/h stone crushing and screening line (feeder, jaw, cone/impact crushers, screens, conveyors) that turns granite, limestone, basalt and river stone into graded aggregates, delivered turnkey from layout design through installation.
A complete line, delivered turnkey
A complete production line links every machine, feeder, crushers, screens, mills, separators and conveyors, into one engineered process sized to your material and target output. Rather than buying machines piecemeal, you get a working plant designed as a whole, with balanced capacity from feed to finished product.
OCALWA delivers the line turnkey (EPC): site layout design, manufacture, shipping, on-site installation, commissioning and operator training, from a verified factory with international project experience. We previously supplied a complete production line to Colombia.
Key features
Specifications
| Capacity | 200-1000 t/h (also 40/60/100/150/300/500/800 t/h lines) |
|---|---|
| Line includes | vibrating grizzly feeder, jaw crusher (primary), cone and/or impact crusher (secondary/tertiary), multi-deck vibrating screens, belt conveyors |
| Optional add-ons | sand washer for 0-5 mm, dust-control / pulse bag collectors, PLC one-button control |
| Feed material | granite, limestone, basalt, river pebble, andesite, quartz |
| Feed size | boulders up to ~1 m, reduced to 150-250 mm in primary stage |
| Output products | aggregates 0-5 mm (crusher sand), 5-10, 10-20, 20-31.5, 30-80 mm |
| Configuration | single / two / three-stage per hardness & output |
| Delivery | EPC: layout design, manufacture, install, commission, operator training |
| After-sales | on-site install/training, technical support, spare parts |
Configurations & options
Capacity, feed and discharge size, motor power and configuration are matched to your material, hardness and target output. Send us your rock or ore type, feed size and required tonnes per hour and we specify the right machine or line.
Why choose a complete line
One responsible supplier
Every machine is matched and warranted to work together, so there is no capacity mismatch or blame-shifting.
Faster to production
Turnkey design, install and commissioning gets the plant earning sooner than assembling machines yourself.
Proven overseas
The factory has delivered lines across Latin America, Africa, the Middle East and Asia, including OCALWA's line to Colombia.
Ready to import at container scale?
Frequently asked questions
A crushing line includes the feeder, primary and secondary/tertiary crushers, vibrating screens, belt conveyors and controls; a sand line adds a VSI and washer; a beneficiation line adds ball mill, classifier, separation (flotation/magnetic) and dewatering. We design the exact scope to your material and output.
Yes. As an EPC supplier we provide layout design, on-site installation supervision or full erection, commissioning and operator training, plus ongoing technical support and spare parts.
Lead time depends on the line size and configuration, typically a few months for manufacture plus shipping and on-site installation. We give a schedule with the quotation after confirming the flowsheet.
Yes. We can supply add-on stages (extra crusher, screen, washer or sand-making unit) matched to your current plant, or a full replacement line. Send us your current setup and target and we design the upgrade.
You prepare the site levelling, concrete foundations to our drawings, and power and water supply; we provide the full foundation and layout design, equipment, and installation supervision. We advise the exact civil scope with the layout.
Yes. Give us the target output products (aggregate sizes, sand grading, or concentrate grade and recovery) and tonnes per hour, and we design the flowsheet, machine selection and screening to meet that specification.
Yes. Beyond single machines we deliver complete crushing, sand-making and ore-beneficiation lines turnkey (EPC): layout design, manufacture, shipping, on-site installation, commissioning and operator training, from a verified factory. OCALWA has supplied a complete production line to Colombia.
