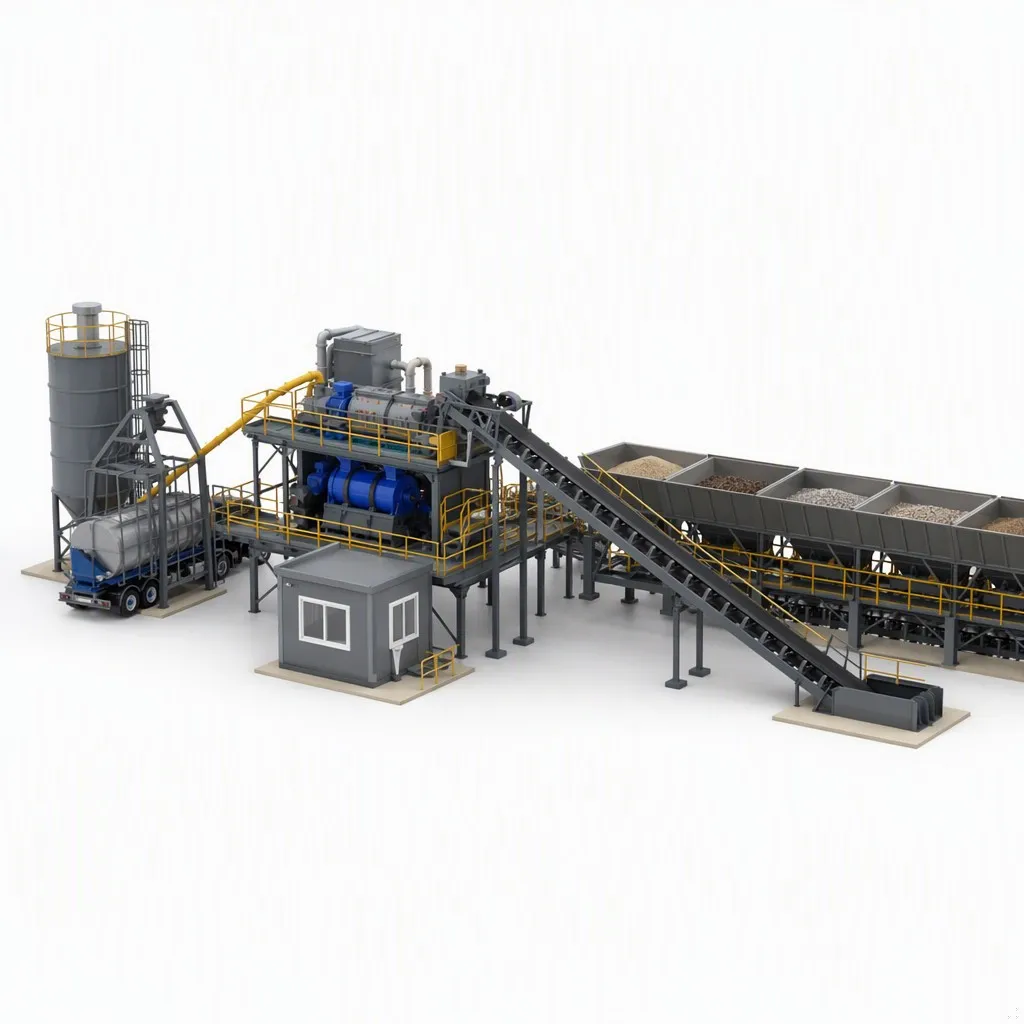

Stabilized Soil Mixing Plant
A stabilized soil mixing plant range delivering 300 to 600 t/h of cement- or lime-stabilized road-base material with ±1-2% metering accuracy, in stationary or mobile configurations, for highway and airport sub-base.
Batch concrete and road-base by the plant
A batching or mixing plant weighs cement, aggregate, sand and water to a precise recipe and mixes them at high volume. Concrete batching plants make ready-mix concrete for construction; stabilized-soil plants make cement- or lime-treated road base; asphalt plants make hot-mix for paving. A twin-shaft forced mixer sits at the heart of each.
Plants come in stationary and mobile (wheel-mounted) versions with PLC control and high weighing accuracy, sized from small jobsite output to commercial and highway scale. OCALWA supplies single mixers or complete plants from a verified factory, matched to your output and project.
Key features
Specifications
| Rated capacity | 300 / 400 / 500 / 600 t/h |
|---|---|
| Total power | 90 kW (300) / 106 kW (400) / 121 kW (500) / 140 kW (600) |
| Max aggregate | <=60 mm |
| Aggregate hopper | 3x10 m3 (300) / 4x10 m3 (400-600) |
| Metering accuracy | Aggregate +/-2%, cement +/-1%, water +/-1% |
| Mixing | Continuous twin-shaft (pugmill) mixing |
| Mobile option | YWBS mobile / wheel-mounted |
| Applications | Cement/lime stabilized soil & aggregate base for highway, road, airport sub-base |
Configurations & options
Output, block/panel sizes, motor power and configuration are matched to your production target, raw material and site. Send us your target blocks or m3 per hour and product sizes and we specify the right machine or line.
Why choose these plants
Precise, consistent mixes
PLC weighing to ±1-2% gives consistent concrete or road-base quality batch after batch.
Right scale for the job
From 25 m3/h jobsite plants to 240 m3/h commercial and 600 t/h road-base, sized to your demand.
Mobile when you move
Wheel-mounted mobile versions relocate fast between road and project sites.
Ready to import at container scale?
Frequently asked questions
Stationary plants suit a fixed batching yard or commercial ready-mix supply; mobile (wheel-mounted) plants suit road, bridge and remote projects that relocate. We advise per your project duration and site.
Concrete batching plants run from 25 up to 240 m3/h with twin-shaft mixers (JS1000-JS4000); stabilized-soil plants run 300-600 t/h for road base. We size the plant to your daily output need.
Yes. JS twin-shaft mixers (500 to 3000 L, 25 to 180 m3/h) are sold stand-alone, or as the host mixer inside a batching plant or block line. Tell us your use and we match the size.
PLC weighing systems hold aggregate to about ±2% and cement and water to about ±1%, for consistent concrete or road-base quality across every batch.
Lead time is a few weeks to a couple of months by plant size, FOB China. We provide foundation and layout drawings, on-site installation and commissioning for plants, a 12-month warranty on main parts, and spare-parts supply.
Mobile drum-mix asphalt plants suit small-to-medium and relocating road jobs; stationary batch and modular plants suit larger fixed output. Asphalt plant capacities are quoted per project; send us your tonnes per hour and burner fuel preference.
Yes. We deliver single machines or complete turnkey lines (block production, batching or road-base plants): layout design, manufacture, shipping, on-site installation, commissioning and operator training, from a verified factory. OCALWA supplied a complete automatic block production line to Colombia.
