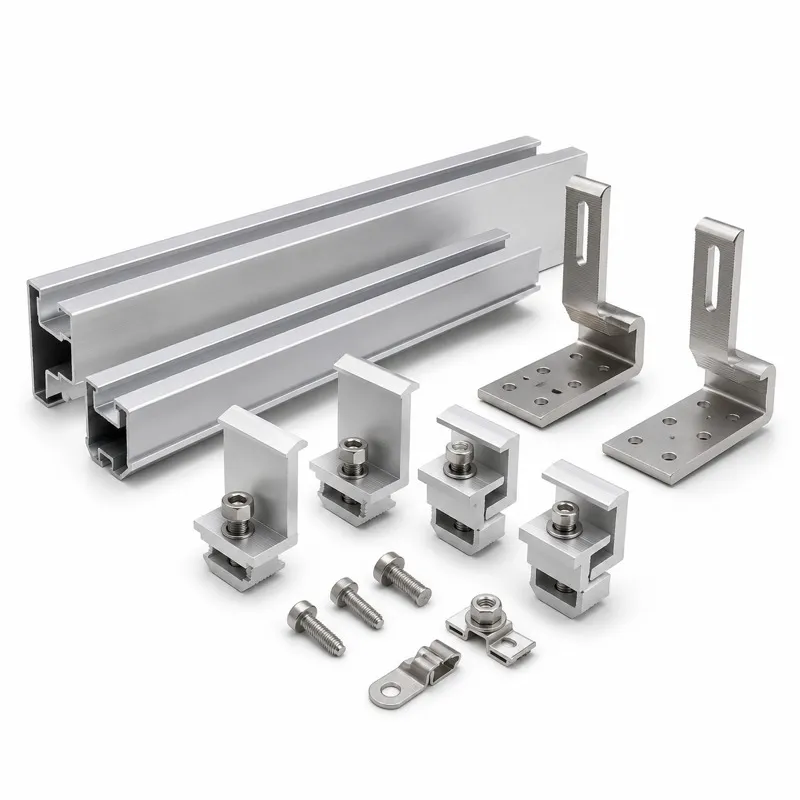

Pitched Roof PV Mounting Bracket Set
A complete pitched-roof PV mounting kit in anodised 6005-T5 aluminium with SUS304 stainless fasteners, rated for high wind and snow loads and supplied with all rails, clamps, hooks and grounding.
Balance-of-system that lasts
Mounting, wiring and protection are the balance-of-system parts that make a solar array safe and long-lived. Anodised aluminium rails and stainless fasteners hold panels through wind and snow, PV cable and MC4 connectors carry DC power safely, and a distribution box with breakers isolates and protects each circuit.
These components meet standard PV ratings for voltage, current and outdoor exposure, and pair directly with our panels and inverters. OCALWA supplies complete balance-of-system so a project ships as one matched order.
Key features
Specifications
| Rail material | Anodised aluminium 6005-T5 |
|---|---|
| Fasteners | SUS304 stainless steel bolts & clamps |
| Roof type | Pitched / tile / metal roof |
| Tilt adjustment | 0-30 adjustable |
| Wind load | Up to 60 m/s |
| Snow load | Up to 1.4 kN/m2 |
| Module thickness | 30-40 mm clamp range |
| Set contents | Rails, mid/end clamps, roof hooks, splices, earthing clips |
| Warranty | 10-15 year structural |
Configurations & options
Voltage, power rating, battery capacity and configuration are matched to your project, grid and climate. Send us your load, backup and site details and we will size the right system.
Why choose matched balance-of-system
Safe and code-ready
Correctly rated cable, connectors and breakers keep the DC system safe and easier to certify.
Built for the outdoors
Anodised aluminium, stainless steel and UV-resistant cable survive decades of sun, salt and rain.
One matched order
Rails, cable and protection ship with the panels and inverter so nothing is missing on site.
