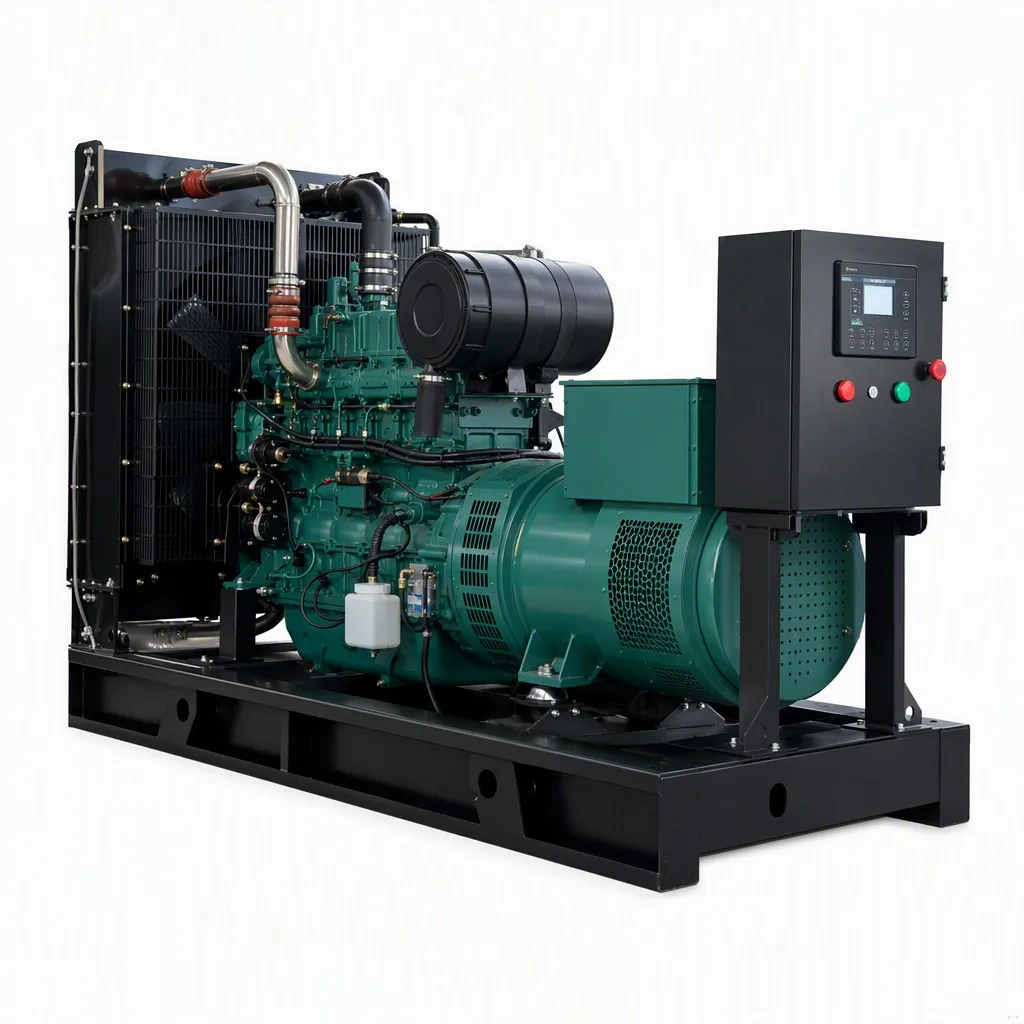

Open-Frame Diesel Generator
An open-frame diesel generator mounts the engine, alternator, radiator, fuel tank and controller on a single rigid steel skid base, the workhorse configuration for industry, mining and grid backup where the set sits indoors or in a plant room. OCALWA supplies open gensets from 8 to 2000 kVA, matched to your load, engine tier and grid, from a verified ISO 9001 + CE factory.
The industrial workhorse set
A diesel engine drives a brushless, self-exciting alternator with AVR voltage regulation for stable output under changing load. The steel skid carries an anti-vibration mounted engine, a radiator sized for hot climates, a base fuel tank for hours of running and a digital controller with engine protection and metering.
You choose the engine tier and the rating (prime or standby), and options such as an automatic transfer switch, larger fuel tank, battery charger, remote monitoring and heavy-duty air filters for dusty sites. It can later be fitted into a soundproof canopy or container.
Key features
Specifications
| Power range | 8 to 2000 kVA (prime / standby) |
|---|---|
| Frequency | 50 Hz or 60 Hz |
| Voltage | 120/240V, 220/380V, 240/416V single or three phase |
| Engine | Choice of established international diesel brands, water-cooled |
| Alternator | Brushless, self-exciting, AVR regulated, IP21/IP23 |
| Controller | Digital, engine protection, metering, auto-start option |
| Fuel tank | Base tank sized for continuous running |
| Cooling | Radiator sized for high ambient / tropical use |
| Options | ATS, battery charger, remote monitoring, large tank, heater |
| Certification | ISO 9001:2015 factory, CE available |
Configurations & options
Rating, engine tier, voltage and enclosure are matched to your load and grid. Send us the kW/kVA you need, whether it is prime or standby, your frequency/voltage and site conditions and we specify the right set.
Why buy diesel generators through OCALWA
Sized and rated correctly
We size the set to your real load and starting surges and rate it prime or standby to how you run, so it neither overloads nor wastes capital.
Engine tier to fit budget & fuel
Pick a premium or economy engine brand to balance price, fuel quality tolerance and the local service network in your country.
Verified factory, full package
From an ISO 9001 + CE genset factory we bundle ATS, cables, batteries and spares and handle export, so you receive a ready-to-commission set.
Ready to import at container scale?
Frequently asked questions
Size on running load plus starting surge, not just the nameplate sum. Motors, pumps, compressors and AC units draw several times their rated current at start, so a set sized only on running watts will stall. Send us your equipment list (with the biggest motors) and whether they start together, and we calculate the kVA.
Standby rating is for backup when the grid fails, used a limited number of hours a year at varying load. Prime rating is for continuous running as the main power source, at a lower rated output for the same set. If it is your only power, size on prime; if it is grid backup, size on standby. We rate it to how you will actually run it.
The set is built with your choice from several established international diesel engine brands, paired with a brushless, self-exciting alternator with AVR voltage regulation. You pick the engine tier to match your budget, fuel and local service network; we confirm the exact pairing and its rating before order.
Yes. We build 50 Hz or 60 Hz and set the voltage to your grid (for example 120/240V, 220/380V or 240/416V, single or three phase). Latin America is mostly 60 Hz. Tell us your country's frequency, voltage and phase and we configure the alternator and controller accordingly.
Yes, with the right build. We fit a radiator rated for high ambient temperature, heavy-duty or pre-cleaner air filters for dusty sites, and we de-rate the output for high altitude, since thinner air reduces engine power. Tell us your site temperature, dust and elevation and we adjust the spec.
The set uses mainstream international engines whose oil, fuel and air filters, belts and pumps are widely stocked across Latin America. We also supply a starter spares kit and can re-order alternator parts, the controller, AVR and hoses so downtime stays short.
Yes. Beyond the bare set we supply the automatic transfer switch (ATS), starting batteries, connection cables, remote monitoring and a starter spares kit, from a verified factory (ISO 9001 + CE). OCALWA arranges container or RORO shipping and full export documentation, and regularly ships to Colombia, Venezuela, Argentina, Paraguay and the Dominican Republic, quoting FOB, CFR or CIF.
