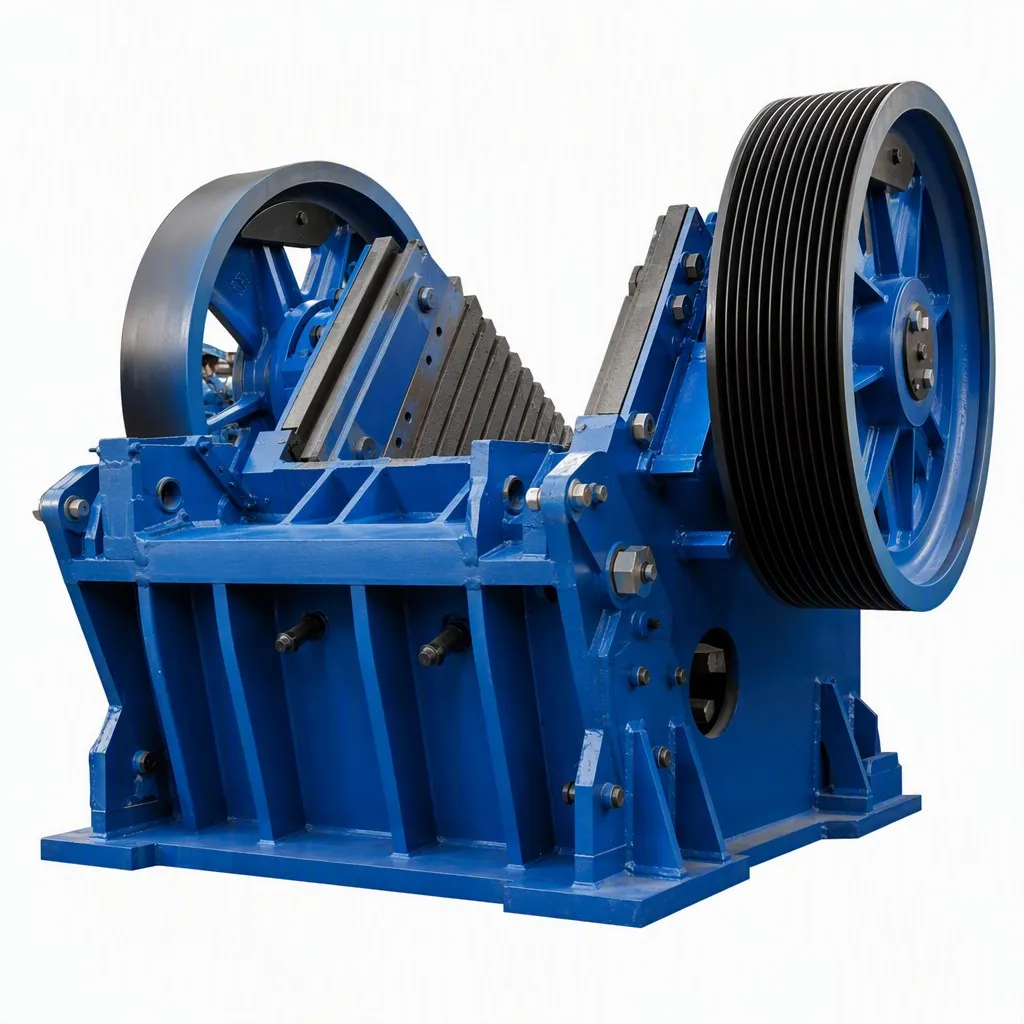

Jaw Crusher
A primary compression jaw crusher (5-1100 t/h, feed up to 1200 mm) that breaks large hard rock such as granite, basalt, limestone and river stone, with high-manganese jaw plates and adjustable 10-360 mm discharge.
Break rock, shape aggregate
Crushers reduce large rock and ore into sized aggregate or feed for the next stage. Primary crushers (jaw, heavy hammer) take run-of-mine boulders; secondary and tertiary crushers (impact, cone) shape the product into cubical, well-graded stone for concrete, roads and railways.
Built with high-manganese and high-chromium wear parts, heavy welded frames and hydraulic setting, these crushers run reliably on granite, basalt, limestone, river stone and ore. OCALWA supplies single machines or complete crushing lines, matched to your capacity and rock hardness, from a verified factory.
Key features
Specifications
| Type | primary compression crusher (fixed + moving jaw) |
|---|---|
| Capacity | 5-1100 t/h |
| Feed opening | 150x750 mm up to 1500x1800 mm |
| Max feed size | up to 1200 mm |
| Discharge (adjustable) | 10-360 mm |
| Motor power | 15-280 kW |
| Jaw plate | high-manganese steel |
| Largest dimension | up to 5100x4700x4300 mm |
| Crushing stage | primary / first-stage |
Configurations & options
Capacity, feed and discharge size, motor power and configuration are matched to your material, hardness and target output. Send us your rock or ore type, feed size and required tonnes per hour and we specify the right machine or line.
Why choose these crushers
Built to last
High-manganese and high-chromium wear parts and heavy frames give long life on abrasive rock.
Right product shape
Impact and cone crushers make cubical, well-graded aggregate that meets concrete and road specs.
Sized to your job
We match capacity, feed and discharge to your rock and tonnes-per-hour, single machine or full line.
Ready to import at container scale?
Frequently asked questions
Start with a primary crusher (jaw for very hard/large rock, heavy hammer for medium-hard rock that can go straight to product), then add a secondary impact or cone crusher to shape and size the aggregate. We design the stages for your material.
Impact crushers suit medium-hard, less-abrasive rock (limestone) and give the most cubical shape; cone crushers suit hard, abrasive rock (granite, river stone, ore) and give lower wear cost at high tonnage. We advise per your rock.
Jaw plates in high-manganese steel, blow bars and impact plates in high-chromium, cone liners and hammerheads, plus bearings, belts and lubrication parts. We supply a spare-parts package with each machine.
Yes. The same crushers feed ore beneficiation lines, reducing ore before grinding and separation. We can supply the crushing section alone or the complete ore processing plant.
Lead time is typically a few weeks to a couple of months by machine size, ex-works or FOB China. Main structural parts carry a 12-month warranty, with wear parts (jaw plates, blow bars, liners) supplied as consumables. Exact terms come with each quote.
Yes. For single machines we provide drawings, foundation guidance and remote support; for lines we send engineers for on-site installation, commissioning and operator training. Spare-parts packages and technical support are available through the machine's life.
Yes. Beyond single machines we deliver complete crushing, sand-making and ore-beneficiation lines turnkey (EPC): layout design, manufacture, shipping, on-site installation, commissioning and operator training, from a verified factory. OCALWA has supplied a complete production line to Colombia.
