Construction Hoist

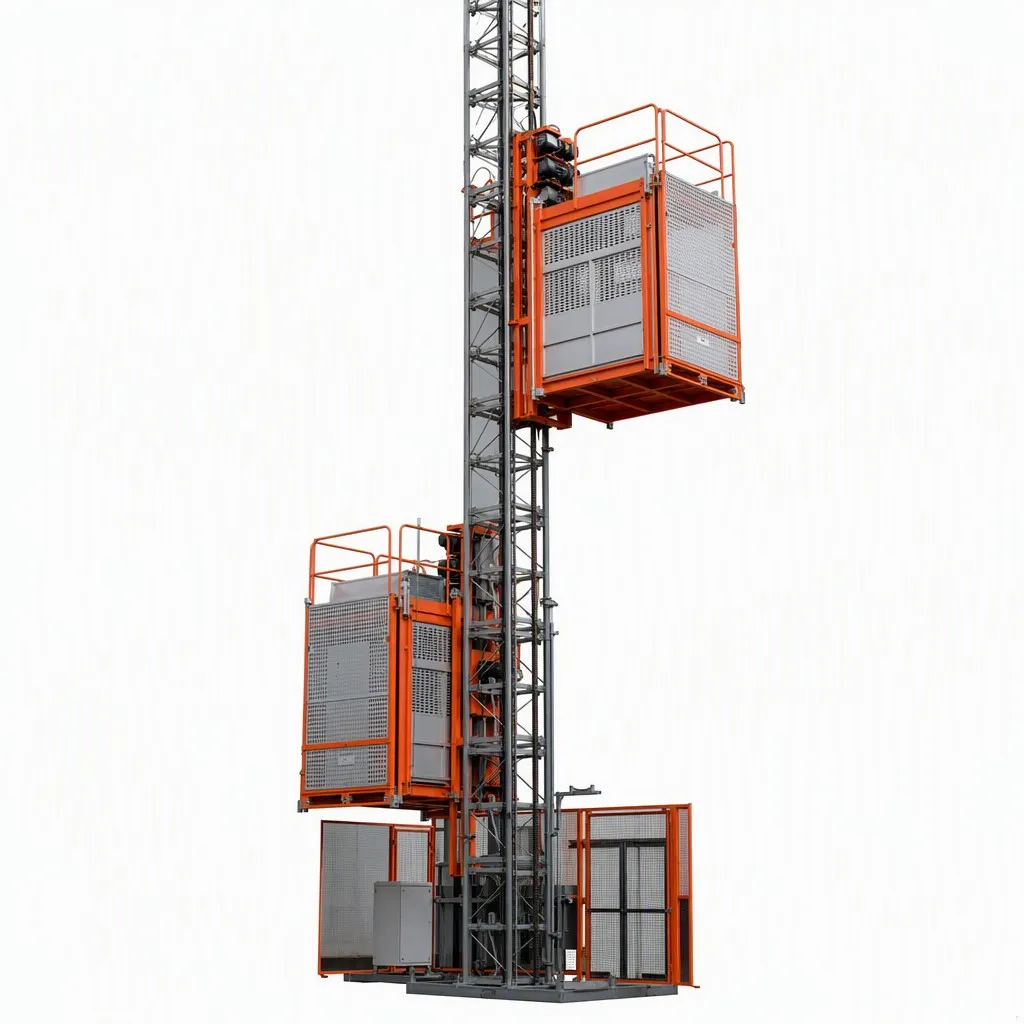

A construction (builder's) hoist is the rack-and-pinion lift that carries workers and materials up the outside of a building during construction, taking load off the tower crane. OCALWA supplies single- and twin-cage hoists from 1 to 2 tonnes per cage, matched to your building height and daily traffic, from verified factories.
Move people and materials, safely, all day
A pinion driven by the cage motor climbs a toothed rack on the bolted mast, so the cage rises under full control and cannot free-fall. A centrifugal safety device grips the rack if the cage over-speeds, and interlocked landing gates and cage doors protect everyone at each floor.
Variable-frequency drive gives soft start/stop and accurate landing levelling; twin-cage layouts double throughput for busy sites. The mast ties to the structure at intervals and climbs as the building grows, up to around 96 m and higher on request.
Key features
Specifications
| Configuration | Single or twin cage, rack & pinion |
|---|---|
| Cage capacity | 1,000 to 2,000 kg (approx. 12 to 24 persons) per cage |
| Lifting height | Up to ~96 m standard (higher on request) |
| Lifting speed | ~0 to 36 m/min (VFD) or fixed speed |
| Drive | 1 to 3 motors per cage, VFD option |
| Safety | Centrifugal anti-fall governor, limit switches, interlocks |
| Mast | Bolted mast sections with rack, wall-tie frames |
| Power | Three-phase electric |
| Options | Call/landing system, cage canopy, overload sensor |
| Certification | Available with CE / factory QC report |
Configurations & options
Cage count, capacity, height and speed are matched to your building and crew size. Tell us final height, people/materials per day and single or twin cage and we specify the hoist. Erection by a qualified local crew.
Why buy construction hoists through OCALWA
Takes load off the crane
Routing people and materials up the hoist frees the tower crane for heavy structural lifts, speeding the whole programme.
Safety built in
Centrifugal anti-fall governor, limit switches and interlocked gates meet site safety expectations; twin cage adds redundancy.
Mast, spares and support
We supply mast sections, rack, pinion, motor brushes and safety devices for reordering, plus erection and maintenance guidance.
Ready to import at container scale?
Frequently asked questions
A single cage suits smaller buildings and lighter traffic. A twin cage runs two independent cars on one mast, roughly doubling how many people and how much material you move per hour, which matters on tall or fast-track projects. We size it to your peak daily traffic.
The cage climbs a toothed rack by pinion, so it is always mechanically engaged, not hanging on a rope. A centrifugal safety governor senses over-speed and clamps the rack to stop the cage within a short distance. Limit switches and interlocked gates add further protection.
Passenger-and-material hoists are rated to carry both people and materials, which is the usual choice on building sites. Material-only hoists are cheaper but not permitted for personnel. Tell us if crews will ride it and we quote the correctly rated, certified passenger version.
The mast stands on a base frame and is tied to the structure with wall-anchor brackets at set vertical intervals, so it climbs safely as floors are added. We supply the tie frames and provide the spacing and anchor loads for your engineer to check against the structure.
Yes. We supply mast sections with rack, pinions, motor brushes, the safety governor, contactors, gates and rollers for reordering. Because a hoist runs all day, we recommend a starter spares kit of high-wear items with the machine.
Yes, and most high-rise buyers do. Ordering the tower crane and construction hoist together lets OCALWA consolidate the shipment, align delivery to your programme and reduce freight and paperwork versus buying them separately.
Yes. OCALWA consolidates the unit from a verified factory, arranges RORO or container shipping, and provides full export documentation (commercial invoice, packing list, certificate of origin, bill of lading). We regularly ship to Colombia, Venezuela, Argentina, Paraguay and the Dominican Republic, and can quote FOB, CFR or CIF to your nearest port.
