Solar Energy

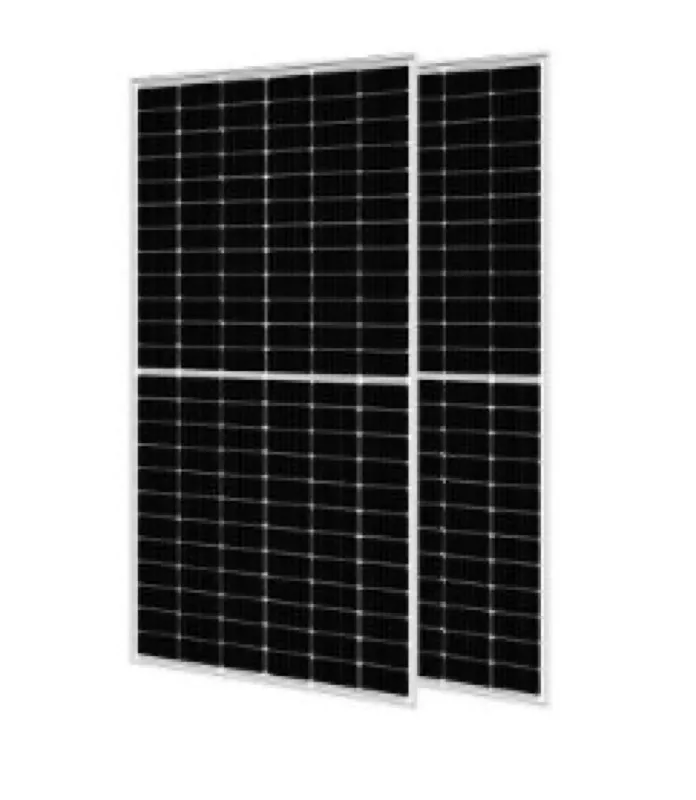

605W Monocrystalline Solar Panel
A high-power 605W N-type monocrystalline module delivering roughly 22.5% efficiency with 144 half-cut cells, tempered anti-reflective glass and an aluminium frame for residential and commercial arrays.
High-efficiency monocrystalline modules
N-type monocrystalline solar panels convert more sunlight into electricity per square metre, so you need fewer modules for the same output. Half-cut cells lower resistive losses and improve shade tolerance, while tempered anti-reflective glass and an anodised aluminium frame stand up to decades of sun, wind and rain.
MC4-compatible connectors make wiring fast and safe, and the modules pair directly with our inverters and mounting for a complete system. OCALWA supplies high-power panels at container scale for rooftops, ground mounts and carports.
Key features
Specifications
| Rated power | 605 W |
|---|---|
| Cell type | N-type monocrystalline (TOPCon) |
| Cell configuration | 144 half-cut cells |
| Module efficiency | ~22.5% |
| Vmp | ~44.5 V |
| Imp | ~13.6 A |
| Voc | ~53.5 V |
| Isc | ~14.4 A |
| Front glass | 3.2 mm tempered anti-reflective |
| Dimensions | ~2382 x 1134 x 35 mm |
| Weight | ~32 kg |
| Frame | Anodized aluminium alloy |
| Connector | MC4-compatible |
| Operating temp | -40 to +85 C |
Configurations & options
Voltage, power rating, battery capacity and configuration are matched to your project, grid and climate. Send us your load, backup and site details and we will size the right system.
Why choose these panels
More power per panel
High-power N-type modules mean fewer panels, less mounting and roof space for the same output.
Built to last
Tempered glass and an anodised frame resist hail, wind and salt for a long service life.
Ready to pair
MC4 connectors and standard voltages pair directly with our inverters and mounting.
Ready to import at container scale?
Frequently asked questions
N-type (TOPCon) cells have lower light-induced degradation and a better temperature coefficient than older P-type cells, so they produce more energy over their life, especially in heat.
The values shown are representative of a 605W N-type module; exact electrical figures and warranty come on the datasheet for the specific batch we quote.
Tier-quality N-type modules typically carry a 12-15 year product warranty and a 25-30 year linear power-output warranty (around 87-90% output at year 25). Exact terms come on the datasheet.
As a rough guide, about seventeen 605W panels make roughly 10 kW. The exact count depends on your energy use, roof area and sun, which we size for your project.
Yes. We consolidate matched inverters, batteries, panels and balance-of-system from one verified factory into full containers, with export documentation, certification and quality control managed by OCALWA.
